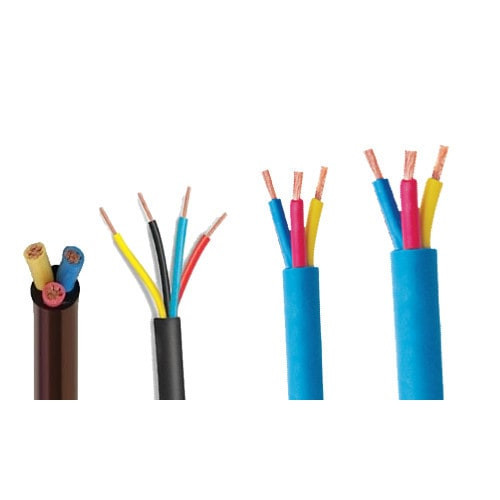

1.5sqmm X 3 Core Submersible Cable
ZMW25.00
Silent Features
- High Flexibility
- Excellent resistance to moisture, abrasion, grace, oil
- Long Life
- Excellent mechanical & electrical properties
Technical Data
| Operating Temp: | -10°C to max.+90°C |
|---|---|
| Nominal voltage: | 1.1 KV |
| Test voltage: | 3.0 KV |
| Min. bending radius: | 6 x cable diameter |

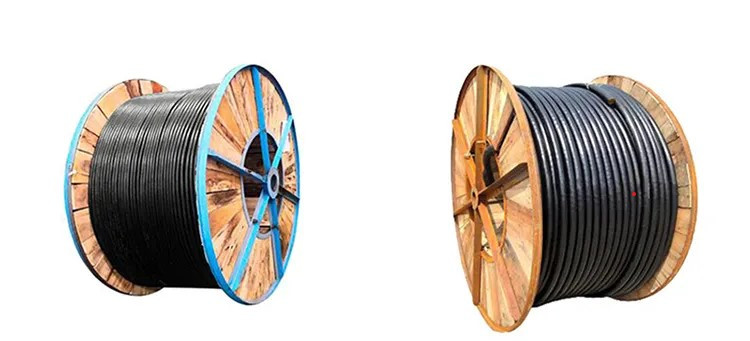

| Standard Packing: | Coils 100, 200,500 and 1000 m |
|---|
Application
Ideal For Irrigation Pumps, Drinking Water Supply Pumps & Submersible Pump Motor Power Supply.
Core Colour
| As per IEC 60227 | Black, Light Blue and Brown |
|---|---|
| As per IS 694 : 2010 | Red, Yellow and Blue |
| Conductor | Insulation | Total Thickness of Double Sheath | Conductor Resistance at 20°C (max) | Current Rating at 40°C | |||
|---|---|---|---|---|---|---|---|
| Size of Cable | No. of Wire / Size of Wire | Thickness | Core OD | Thickness | Overall Size | ||
| Sq. mm. | Nos./mm | mm | mm | mm | mm | Ω/km | Amps. |
| 1.5 | 22/0.30 | 0.8 | 3.25 | 1.5 | 10.0 | 12.1 | 14 |
| 2.5 | 36/0.30 | 0.9 | 3.84 | 1.5 | 11.0 | 7.41 | 18 |
| 4.0 | 56/0.30 | 1.0 | 4.5 | 1.6 | 13.0 | 4.95 | 26 |
| 6.0 | 84/0.30 | 1.0 | 5.3 | 1.6 | 14.6 | 3.30 | 31 |
| 10.0 | 140/0.30 | 1.0 | 6.5 | 2.0 | 18.0 | 1.91 | 42 |
| 16.0 | 224/0.30 | 1.0 | 8.0 | 2.0 | 21.2 | 1.21 | 57 |
